Quick Connector Icon 6mm Icon 8mm Icon 10mm
Quick Connector is applied for 90° right-angle connection of two sections aluminium extruded profile. It is hidden inside of the profile during installation. Vertical and Horizontal syles are both available

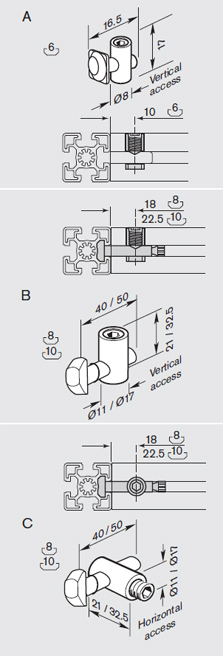

Quick connector Drawing
Features:
  • Quickly and easily connect 6mm, 8mm and 10mm profiles at right angles
  • Fast assembly and disassembly: ideal for temporary structures such as trade show displays and fixtures
  • Keeps three T-slots open for mounting panels or accessories
  • Choose either perpendicular or
    parallel options

Materials:

  • A Stainless steel
  • B & C Zinc-plated 8.8 steel
  • B & C Ni-plated 8.8 steel

Machining Required:

  • 11mm barrel: 11mm through-hole
  • 17mm barrel: 17mm through-hole
Quick Connector Sketch
Quick connector
Quick connector
Description
Part Number
A Quick connector/rigid for Icon 6&6
Vertical access. Includes 6mm T-bolt, 8mm barrel.
3 842 537 013
B Quick connector/rigid for Icon 8&8
Vertical access. Includes 8mm T-bolt, 11mm barrel.
3 842 535 459
B Quick connector/rigid for Icon 8&10
Vertical access. Includes 10mm T-bolt, 11mm barrel.
3 842 535 464
B Quick connector/rigid for Icon 10&10
Vertical access. Includes 11mm T-bolt, 17mm barrel.
3 842 535 458
C Quick connector/rigid for Icon 8&8
Vertical access. Includes 8mm T-bolt, 11mm barrel.
3 842 535 465
C Quick connector/rigid for Icon 10&10
Vertical access. Includes 10mm T-bolt, 17mm barrel.
3 842 535 466


Hint:
You can see the quick connector assembling demostration as the flash below.
