Mounting Strips Icon 8mm Icon 10mm
Mounting strips is ideal for attaching panels, switches, valves and other accessories.

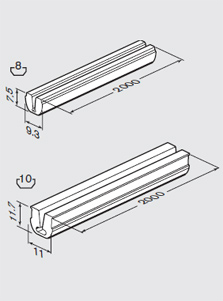

Mounting Strips Drawing
  • Ideal for attaching panels, switches, valves, and other accessories
  • Screws can be attached anywhere along T-slot without drilling
  • Snaps into T-slot for easy installation and positioning, then expands as screw is installed, locking it in place
  • Delivered in 2000mm long strips; can be easily cut to length


  • Light gray PVC
QMounting Strips Sketch
Part Number
Mounting strip, 8mm
3 842 524 069
Mounting strip, 10mm
3 842 524 072
