Connection Screw is specialized in connecting two sections of - 10 series profiles. It needs to make a hole and drill screw thread in appointed position for connection before installation.

T Blocks Drawing
Joint Bolt
Features:
  • Provides strong connection with high resistance to vibration
  • Available as Torx head or standard hex socket head
  • Does not obstruct T-slot

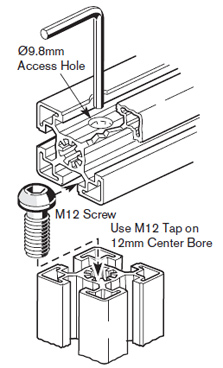

Machining Required :

  • 9.8mm access hole
  • Center bore of profile tapped M12

Materials:

  • S35c Zinc Plated steel, class 8.8
T Blocks Sketch
Description
Part Number
M12x30 connection screw, 8mm socket head   8mm icon Icon Socket
8 981 021 301
M12x30 connection screw, T50 Torx head   8mm icon Icon Torx
3 842 530 235
M14x30 connection screw, 8mm socket head   8mm icon Icon Socket
8 981 021 501
M14x30 connection screw, T50 Torx head   8mm icon Icon Torx
3 842 530 335
