T-Nuts
T nut can fasten other connecting pieces to profile's groove duct simply and safety. It can locate automatically and lock tightly during assembly. To fix components to profiles, penetrates the anodized coat of the profile - thus ensuring a safe, electronically conductiove connection.
|
Features:
-
Installs anywhere along the profile’s
T-slot and rotates into position
- Ridges “bite” into profile to lock the T nut
into position, and provide ESD
protection and resistance to vibration
- Large contact surface improves
gripping strength
- Tapered neck simplifies assembly;
T-nut is self-aligning in T-slot
- M4 & M5 threads have 2 ridges
- M6 & M8 threads have 4 ridges
- 8-32 & 10-32 have 2 ridges
- 1/4” & 5/16” have 4 ridges
Materials:
- Zinc-plated 8 steel
- Ni-plated 8 steel
- A2(AISI 304) and A4(AISI 316) stainless steel
|
|
|
|
| Description |
Tightening Torque(± 5%) |
Part Number |

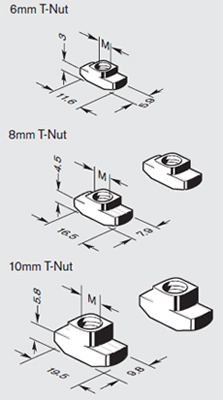

| 6mm T-Nuts |
|
|
| M4 |
5 Nm |
3 842 523 135 |
| 8mm T-Nuts |
|
|
| M4 |
5 Nm |
3 842 501 751 |
| M5 |
5 Nm |
3 842 501 752 |
| M6 |
10 Nm |
3 842 501 753 |
| 1/4"x20 UNC |
5 Nm |
8 981 016 124 |
| 8-32 UNC |
5 Nm |
8 981 016 122 |
| 10-32 UNF |
5 Nm |
8 981 016 123 |
| 10mm T-Nuts |
|
|
| M4 |
5 Nm |
3 842 530 281 |
| M5 |
5 Nm |
3 842 530 283 |
| M6 |
10 Nm |
3 842 530 285 |
| M8 |
25 Nm |
3 842 530 287 |
| 1/4"x20 UNC |
10 Nm |
8 981 021 323 |
| 8-32 UNC |
5 Nm |
8 981 021 321 |
| 10-32 UNF |
5 Nm |
8 981 021 322 |
| 5/16"x18 UNC |
5 Nm |
8 981 021 324 |
|
| |
|
|
