T-Blocks and Springs

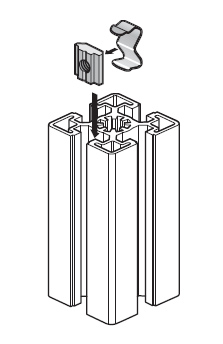

T-Block should be pre-staffed into profile's groove duct before installation, and it is applied for kinds of accessories connection on profile. Spring can be used to hold T-Block in place while making vertical connections.

Features:

Slide into ends of T-slot
Used to fasten heavy loads to
T-slotted profiles; seven-thread
engagement for strong, secure
mounting
Large contact surface with inside
of profile’s T-slot provides secure
fastening
Can be easily repositioned in T-slot
Spring can be used on any 6mm,
8mm, or heavy (H-series) 10mm T-slot to hold T-block in place while making vertical connections

Materials:

Zinc-plated 8.8 steel
Ni-plated 8.8 steel
Spring: spring steel.

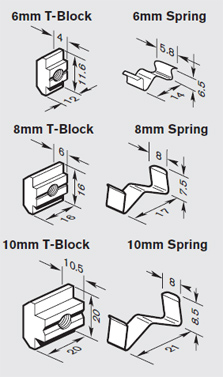

Description	Tightening Torque(± 5%)	Part Number
6mm T-Blocks
M4	5 Nm	3 842 523 140
M5	5 Nm	3 842 523 142
Spring for 6mm T-block		3 842 523 145
8mm T-Blocks
M4	5 Nm	3 842 514 928
M5	5 Nm	3 842 514 929
M6	10 Nm	3 842 514 930
M8	25 Nm	3 842 514 931
Spring for 8mm T-blocks		3 842 516 685
10mm T-Blocks
M5	5 Nm	3 842 528 741
M6	10 Nm	3 842 528 738
M8	25 Nm	3 842 528 735
Spring for 10mm T-blocks		3 842 516 669
