Diamond Nuts

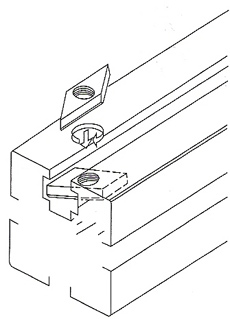

Diamond Nut is used for part's missed or increased assembly. Put downwards t he side with chamfer, and put it into groove asiant, rotate clockwise for 45°, making side face of size A contact with side face of profile's groove.

Diamond Nut Drawing
Diamond Nut
Features:
  • Used for part's missed or increased assembly
  • One side chamfer surface for easy usuage
  • Large surface area contact with
    profile’s T-slot ensures solid grip



Materials:

  • Zinc Plated steel
Diamond Nut Sketch
Description
A
B
C
Part Number
Diamond Nuts: 10LM4
9.8
4
M4
3 842 730 321
Diamond Nuts: 10LM5
9.8
4
M5
3 842 730 322
Diamond Nuts: 10LM6
9.8
4
M6
3 842 730 323
Diamond Nuts: 14LM4
13.5
4
M4
3 842 730 324
Diamond Nuts: 14LM5
13.5
4
M5
3 842 730 325
Diamond Nuts: 14LM6
13.5
4
M6
3 842 730 326
Diamond Nuts: 14LM8
13.5
4
M8
3 842 730 327
